case study
Salt Barn Refurbishment
Client: M Group & Hampshire County Council
Results
Budget: £114,000
Duration: March 2024
Outcome:
Delivered on time and within budget
Impact: Refurbished salt barns with enhanced durability and protection against corrosion safeguarding critical winter infrastructure
Contact Us About Your Next Project
Specialist Refurbishment Safeguarding Critical Winter Infrastructure
Client Requirement

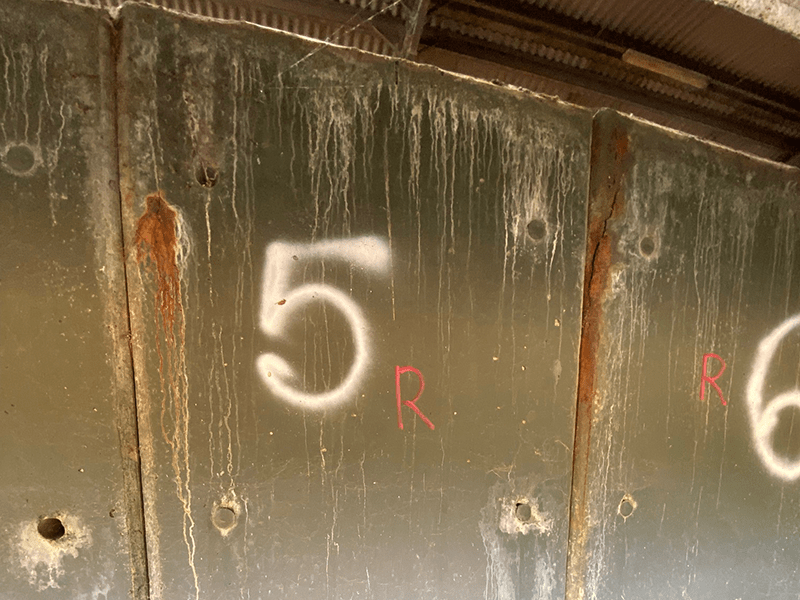

Salt barns are critical infrastructure for winter road maintenance but are subject to severe corrosion due to prolonged salt storage. This corrosion damages reinforcing steel within the concrete wall panel sections, causing structural deterioration as the steel expands and cracks the surrounding concrete. M Group and Hampshire County Council engaged Triangle to carry out a refurbishment programme that would extend the service life of barns in the area, improve safety, and protect the structures against future corrosion.
Scope & Delivery
Concrete Wall Sections

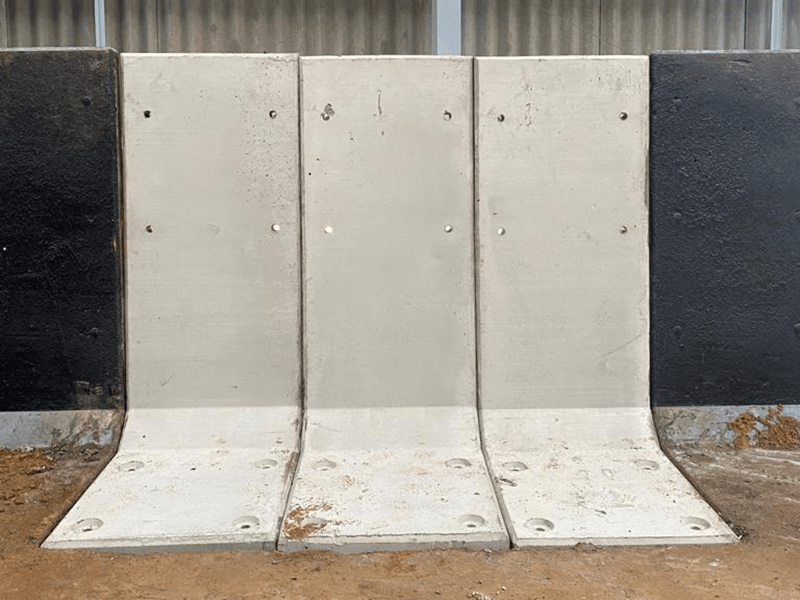

- Bespoke wall panels were cast to exactly match the dimensions of the existing panels
- New panels were installed with precision to avoid damage to adjoining structures

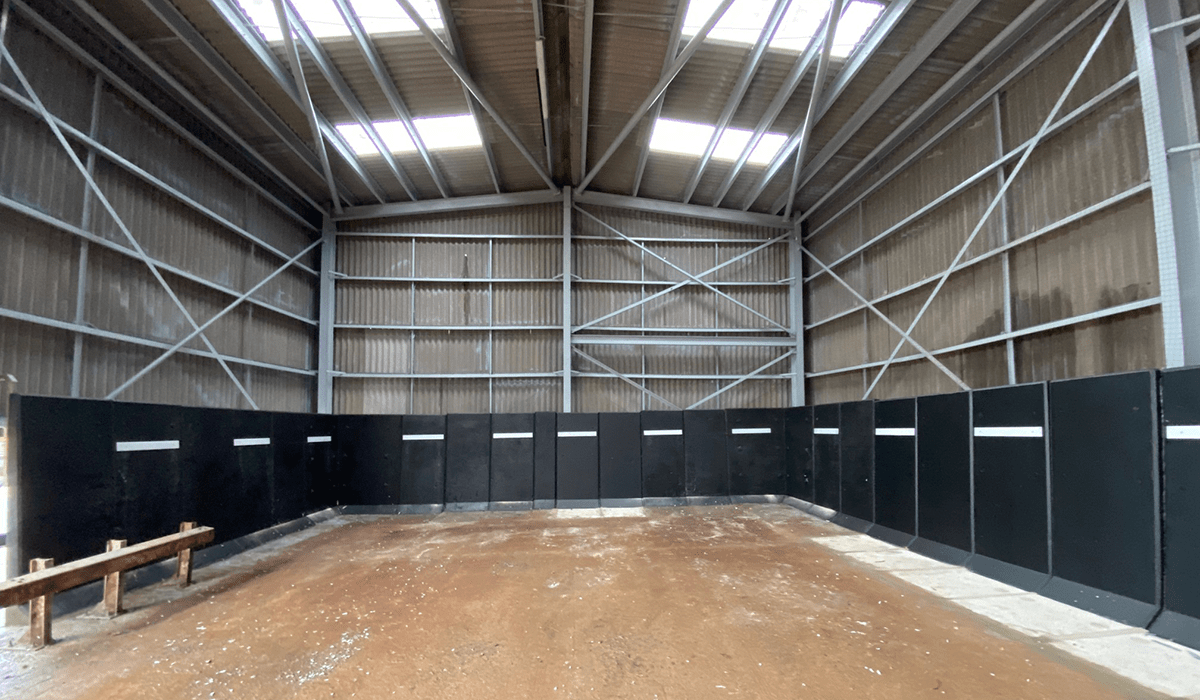

- All concrete panels received a fresh protective coat of paint and HDPE height markers for improved functionality
Repainting Barn Structural Steels
- Specialist salt removal methods were applied to clean the steel framework without damaging roof sheets
- High-pressure cleaning techniques were carefully managed due to working-at height constraints
- The steel structure was fully primed with Sigma PPG 80 two-part protective paint system, ensuring long-term corrosion resistance
Core Services Delivered by Triangle
- Survey
- Design
- Fabrication
- Installation
- Construction Management
- Project Management
- Quality Control
Key Outputs
- Salt barns fully refurbished, delivering enhanced durability and long-term protection against corrosion
- Structural steel repainted and protected, safeguarding the integrity and lifespan of the asset
- All key performance targets achieved – including time, cost, labour hours, and environmental compliance
- High client satisfaction, with Triangle’s independent project management ensuring minimal client involvement was required
Challenges Overcome
Panel Replacement Risks – We overcame the challenge of removing and replacing existing wall panels without damaging the adjacent sections by using careful dismantling methods and bespoke casting, which allowed for precise installation with no structural compromise.

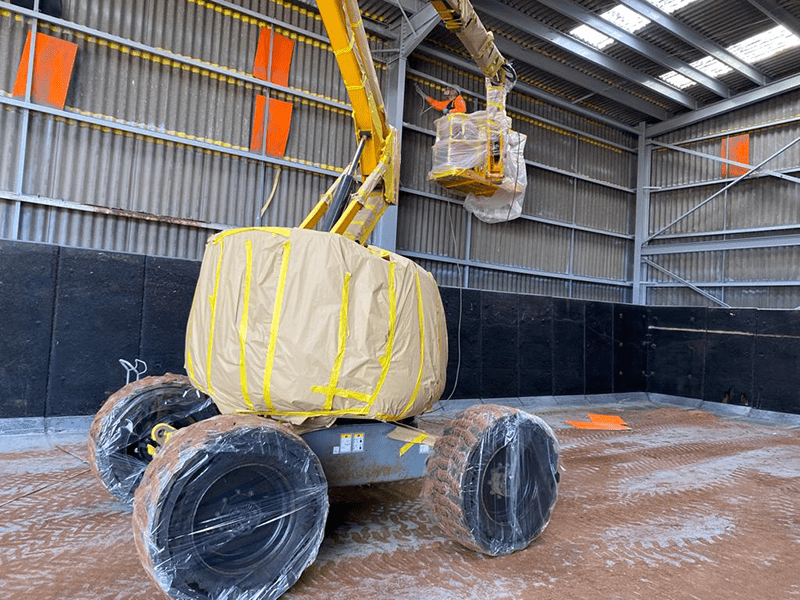

Working at Height – We addressed the challenge of cleaning and painting the barn’s steel frame safely at height while avoiding roof sheet damage by using specialist access systems and low-impact cleaning methods, ensuring both worker safety and roof integrity.
This salt barn project highlights Triangle’s expertise in specialist concrete works, corrosion prevention, and structural refurbishment
